TL;DR: A dieline is a flat, 2D technical template that shows exactly how a packaging box will be cut, scored, and folded to create a 3D structure. Designers print artwork on the dieline layout; manufacturers use it to program die-cutting machines.
Table of Contents
Dieline Definition

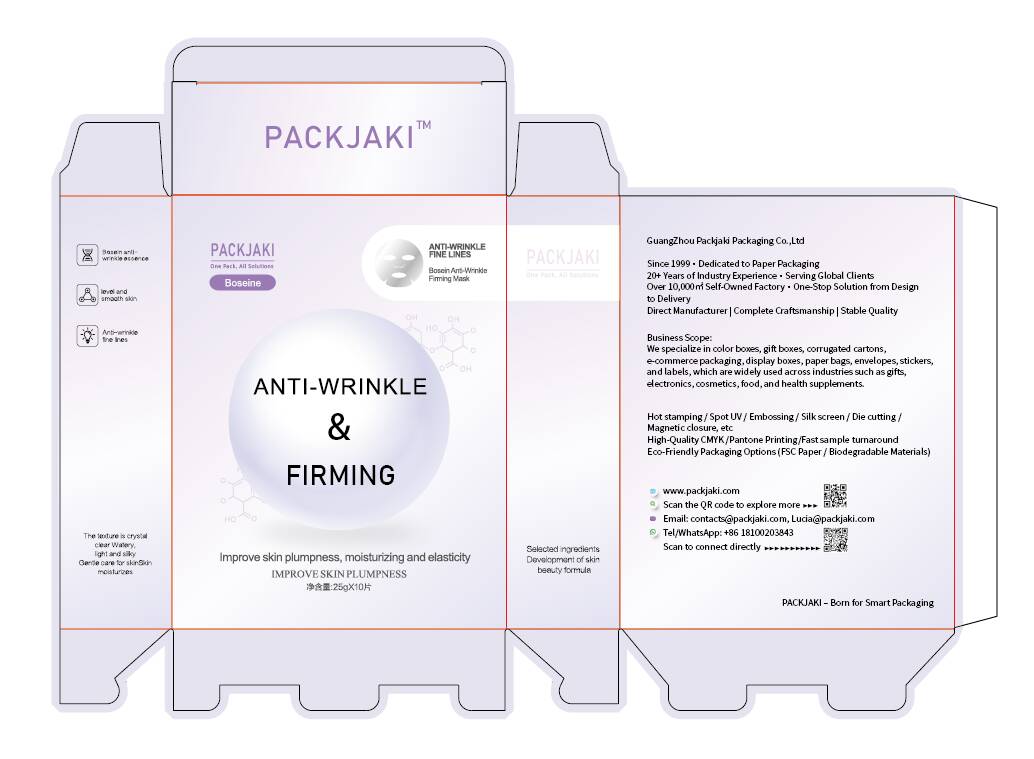

A dieline (also called a “die cut template” or “structural template”) is a flat 2D vector drawing that represents all the cut lines, fold lines, and glue areas of a packaging box in its unfolded, flat state. When the box is cut from a sheet of paperboard along the dieline and folded along the score lines, it becomes the finished 3D box.
Think of it as a sewing pattern — but for cardboard instead of fabric.
Why Dielines Matter
Without a correct dieline, artwork does not align with the box structure. Images that look correct on screen get cut in the wrong place, or text crosses a fold line. Dielines prevent:
- Print misregistration at fold/cut edges
- Bleed areas that do not extend far enough
- Safe zone violations (text too close to cut lines)
- Wrong box dimensions ordered from the factory
Anatomy of a Dieline: Key Lines Explained
| Line Type | Usually Shown As | Meaning |
|---|---|---|
| Cut line | Solid line | Where the die cuts through the board |
| Score / fold line | Dashed or dotted line | Where the board is pressed to fold |
| Glue area | Crosshatch or blue zone | Where adhesive is applied |
| Bleed line | 3mm past cut line | Print must extend here to avoid white edges |
| Safe zone | 3mm inside cut line | Keep text and logos inside this boundary |
Common Box Types and Their Dielines
1. Tuck-End Folding Carton
The most common retail carton — cereal boxes, cosmetic cartons, supplement bottles. The dieline shows a single flat panel with four main body panels, two top tuck flaps, and two bottom lock flaps.
2. Rigid Box (Set-Up Box)
Luxury rigid boxes have separate lid and base dielines. Each is a simple cross shape — four side walls fold up and are glued at the corners, then wrapped with printed paper or fabric.
3. Mailer Box
E-commerce mailer boxes use an auto-lock bottom and fold-over lid. The dieline looks like an asymmetric cross with long flaps. The perforated tear strip (if included) must be marked as a perforation line, not a score line.
How to Get a Dieline for Your Box
- Request from your manufacturer: Legitimate packaging suppliers provide dielines free of charge once you confirm box dimensions. At Packjaki, we send an Adobe Illustrator (.ai) dieline file within 24 hours of receiving your box specs.
- Download a free template: Sites like Packmage, Eline-Studio, and Template.net offer free downloadable dielines for standard box sizes.
- Use a structural design tool: Tools like Esko Studio or ArtiosCAD create parametric dielines — you enter dimensions, the software generates the flat template.
- Commission a structural designer: For custom or unusual structures, freelance packaging engineers on Upwork charge $100-$400 for a fully tested dieline.
How to Prepare Artwork on a Dieline
- Open the dieline in Adobe Illustrator. Keep the structural lines on a locked layer labeled “Dieline — do not print.”
- Create a new layer below for your artwork.
- Extend background colours and images 3mm past the cut line (bleed).
- Keep all text and logos at least 3mm inside the cut line (safe zone).
- Set colours to CMYK (not RGB). Use Pantone swatches for brand colours.
- Embed all linked images at 300dpi minimum.
- Export as PDF/X-1a or PDF/X-4 for print production.
Common Dieline Mistakes That Cause Reprints
| Mistake | Result | Fix |
|---|---|---|
| Text crossing fold line | Text splits across two panels | Move text 5mm away from any score line |
| No bleed | White edge after cutting | Extend all artwork 3mm past cut line |
| Wrong dimensions | Box does not fit product | Measure product + 2-4mm clearance each side |
| RGB colours | Colour shift on print | Convert all to CMYK before supplying files |
| Low-res images | Blurry print output | Use 300 dpi at final print size |
Frequently Asked Questions
What software opens dieline files?
Adobe Illustrator (.ai or .eps format) is the industry standard. Affinity Designer and CorelDRAW also open dieline files. Canva cannot handle vector dielines for print production.
Does my packaging supplier provide dielines?
Yes — any professional supplier provides dielines free when you confirm dimensions and box style. If a supplier charges for a standard dieline, that is a red flag.
What is the difference between a dieline and a mockup?
A dieline is the flat, production-ready technical file. A mockup is a 3D visual rendering showing how the finished box looks. Mockups are for client approval; dielines go to the factory.
Can I use one dieline for different box sizes?
No. Each box size needs its own dieline — even a 2mm difference in height changes the entire flat template. Always request a new dieline when dimensions change.
How long does it take to create a custom dieline?
Standard box structures: 1-2 business days. Complex custom structures (unusual openings, magnetic closures, multi-compartment trays): 3-5 business days for a structural engineer to design and test.
Is a dieline the same as a cut file?
Essentially yes. “Cut file” is the term used in digital cutting (Cricut, Silhouette) and usually refers to SVG format. “Dieline” is the term used in commercial print/packaging. Both describe the flat cut and fold template.
